Accessing Fudo Enterprise Portals

Fudo Enterprise encompasses two primary access interfaces:

  • Admin Panel - for administrative tasks,
  • User Access Gateway - for accessing resources.

Both portals provide secure and user-friendly interfaces for interacting with the Fudo Enterprise features.


Admin Panel

Admin Panel is a central management interface in Fudo Enterprise, used primarily by administrators. It provides a range of functionalities for system configuration, user management, security settings, and other administrative tasks. It’s the control center for managing and configuring the Fudo Enterprise system.

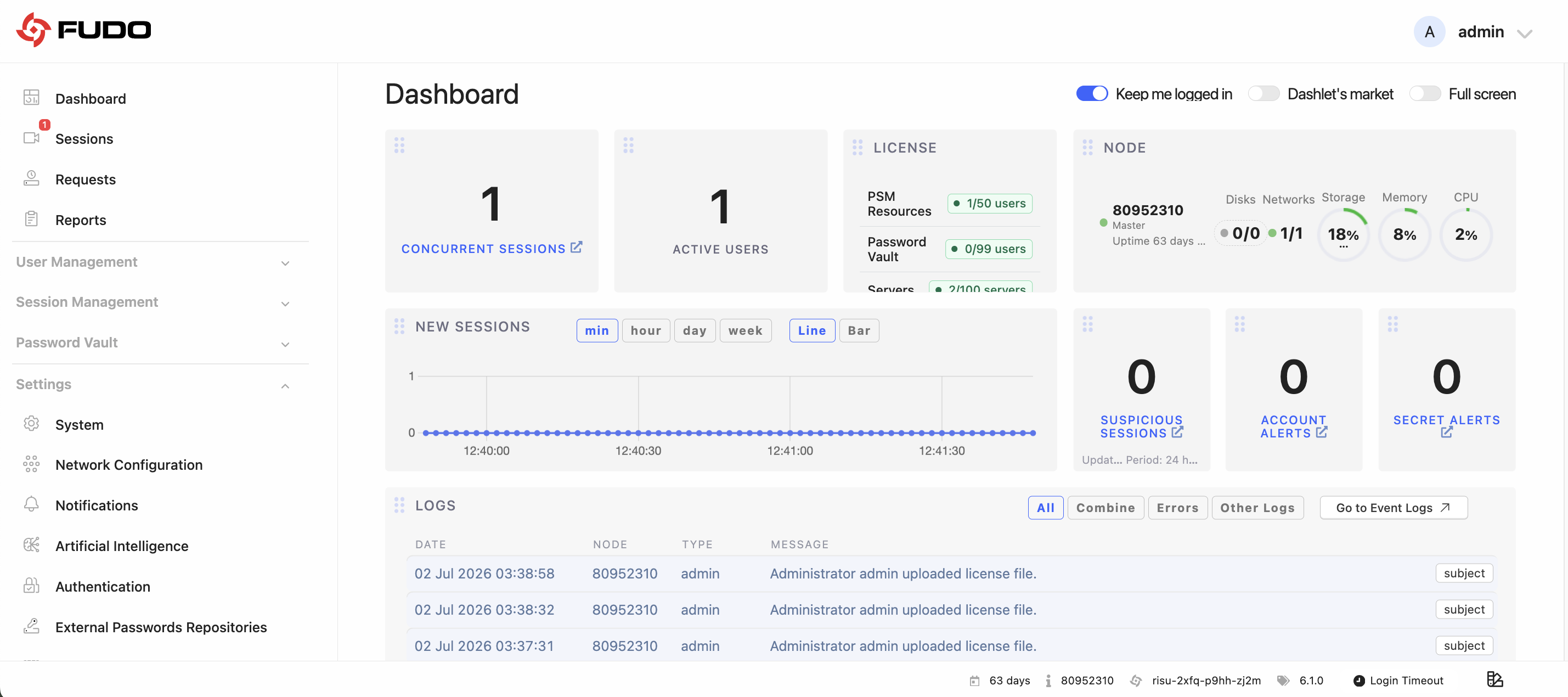

../../_images/5-1-dashboard.png

To access the Admin Panel follow below steps:

  1. Open web browser and direct it to the IP address of the Admin Panel. It is usually an IP address configured during the deployment procedure.
  2. Provide the administrators credentials and click the Login button.

Note

Default login credentials:

login: admin
password: proxycrypto
../../_images/5-5-mgmt-login-page.png

User Access Gateway

This component is designed for end users. It allows them to browse available resources and initiate connections with monitored servers using a selected listener. The User Access Gateway facilitates user access to resources in a secure and controlled manner.

../../_images/user-portal-5-0.png

To log in to the User Access Gateway follow below steps:

  1. Open web browser and direct it to the IP address of the User Access Gateway.

Note

You can obtain User Access Gateway IP address from your system administrator or by accessing the Settings > Network configuration menu in the Admin Panel. To learn more please refer to the Network interfaces configuration section.

../../_images/5-5-network-conf.png
  1. Accept the security alert exception to display the login page.
  2. Enter the username and password configured while creating the User in Fudo Enterprise.
  3. Click the Login button.
../../_images/5-5-uag-login-page.png

For detailed information regarding the User Access Gateway, please refer to the documentation available under the User Access Gateway entry at the end of the navigation menu in the table of contents.

Supported Web Browsers

Following web browsers are supported:

  • Google Chrome, Mozilla Firefox, Internet Explorer for Microsoft Windows.
  • Google Chrome, Mozilla Firefox for Ubuntu.
  • Google Chrome, Mozilla Firefox, Safari for Mac OS X.
