Session data backup

Warning

Session data backup contains confidential information.

Fudo Enterprise allows configuring multiple backup target destinations, where data can be stored. Each backup target can have Backblaze, FTP, S3, or SFTP as a destination place.


To enable automated backups service, proceed as follows.


  1. Select Settings > Backup and retention.
  2. Select Backup enabled option. Please note that in case of the configured cluster, this option enables backup for the current node only.
  3. In the Add backup field click desired backup type button in order to configure your future backup target place: Backblaze, S3, FTP or SFTP.
  1. Set a name for your backup target.
  2. Provide additional data depending on the selected connection type:
  • Configuring a Backblaze backup target, provide: Bucket, Directory, and credentials, such as Account and Key.
  • For FTP type backup target provide: Server address (IP address or host address), Directory, and credentials, such as Username and Password.
  • With S3 type chosen, provide additionally: Bucket, Directory, Access key, Secret Access key, Region and Endpoint.
  • For SFTP type backup target provide: Server address (IP address or host address), Username, Directory, User private key, Server public key, and Port number.

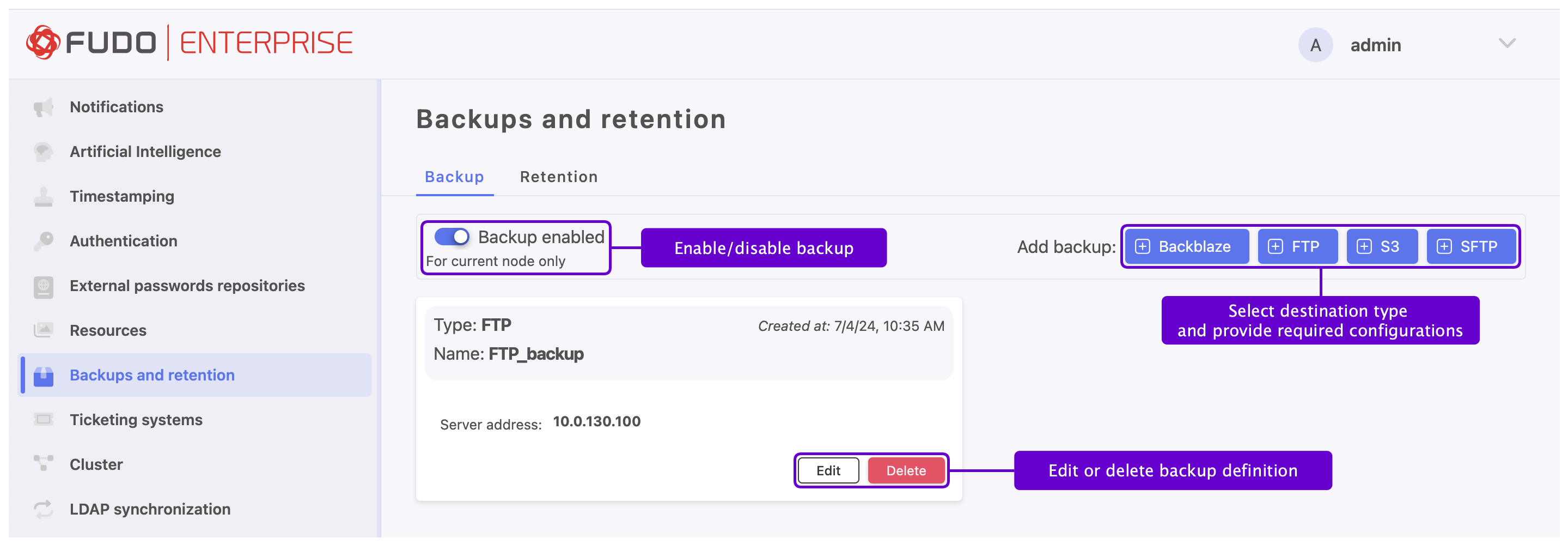

../../_images/5-5-backup.png
  1. Click Save.

Now, the configured Backup target can be added to the Safe settings to enable automatic storing the sessions and safe data in the defined target place.

../../_images/5-5-backup-target.png

Sessions data that was sent to the backup target place is assigned with the respective icon on the Sessions list.

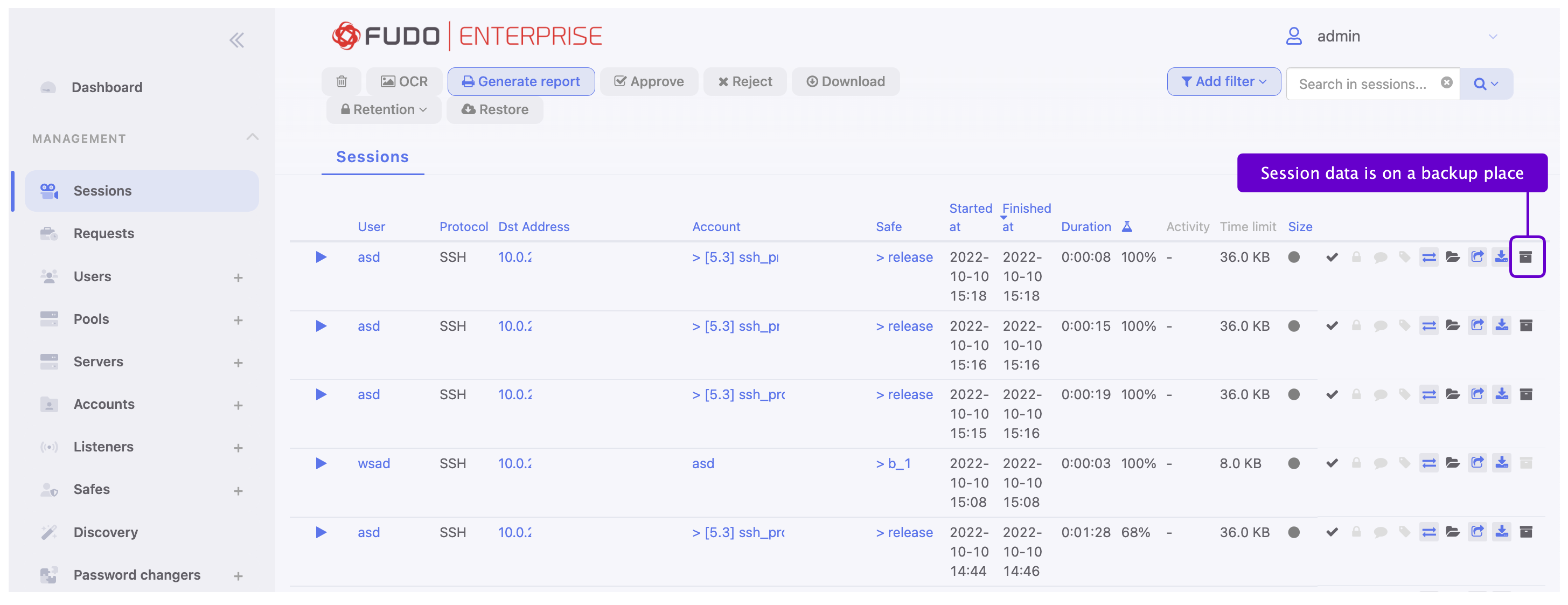

../../_images/5-5-sessions-backup.png

If the session has its backup version stored outside of Fudo Enterprise, it can be downloaded from the backup place to the Fudo Enterprise local instance with the Restore option.

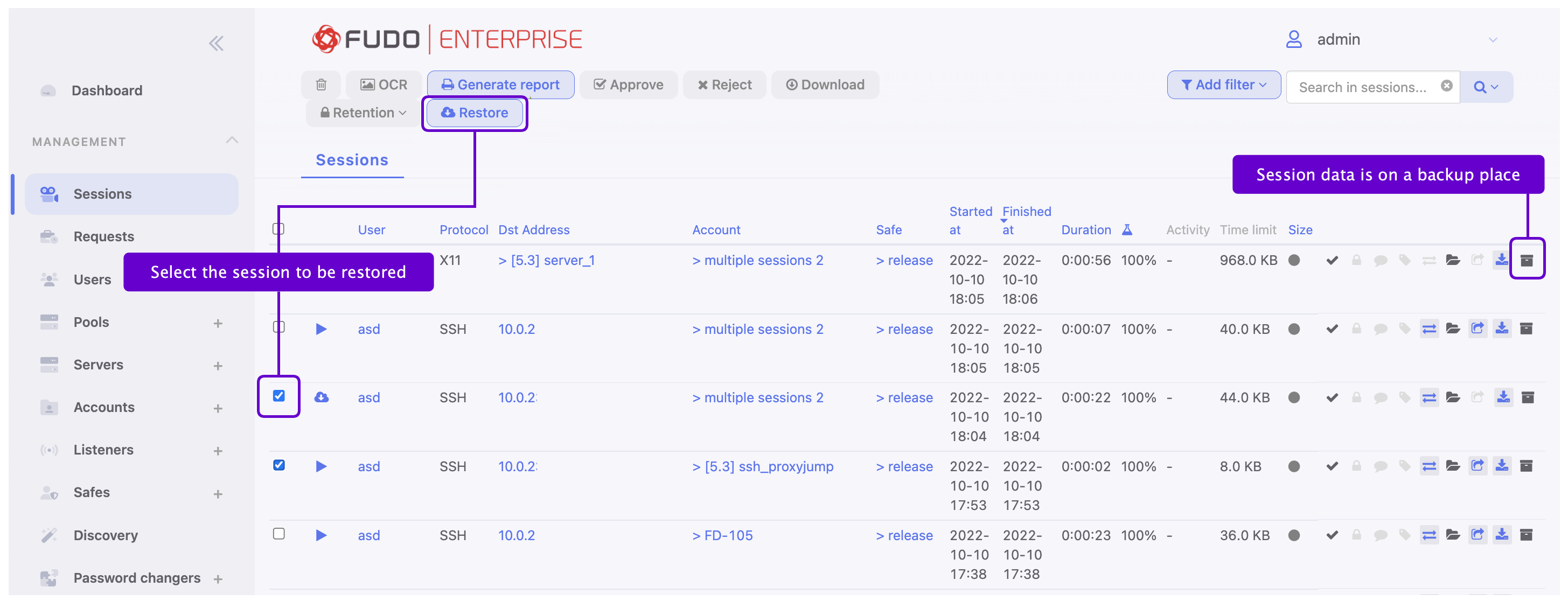

../../_images/5-5-sessions-restore.png

Restoring system from backup

System restore service is provided by the technical support department on terms agreed in the SLA.
