User portal configuration

Login Screen Configuration

Fudo Enterprise enables customizing information displayed on the User portal login screen.

  1. Select Settings > Resources.
  2. Select USER PORTAL tab.
  3. Click Upload new image button, browse the file system and select a custom logo for the User portal login screen.

Note

Maximum image size is 5 MB.

  1. Provide the login screen announcement.

Note

Login screen announcement can be four lines, up to 120 characters.

  1. Provide company information.

Note

Company information can be five lines, up to 70 characters.

  1. Enter help desk contact information.

Note

Helpdesk contact information can be five lines, up to 70 characters.

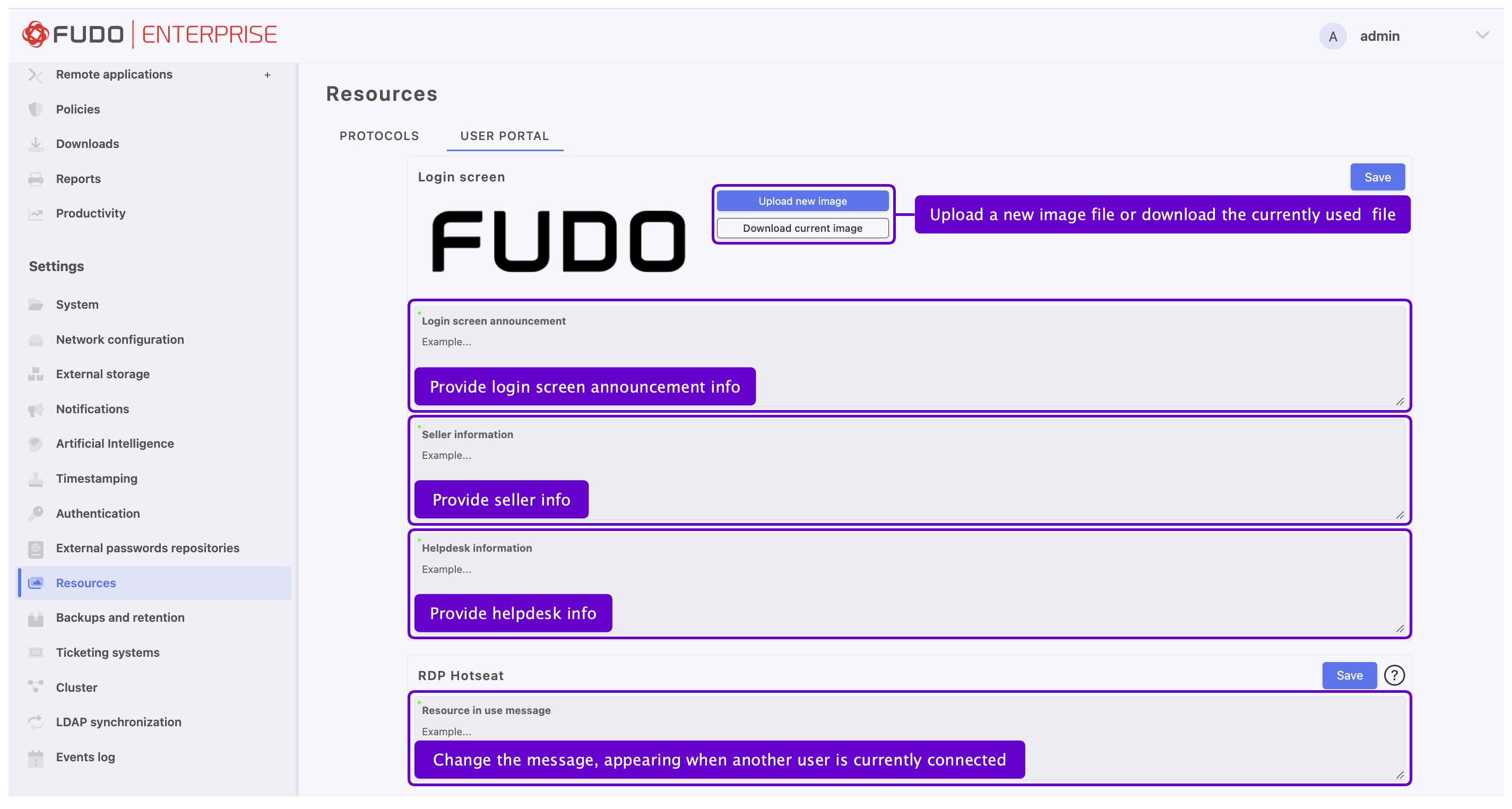

../../_images/5-5-user-portal-login-screen.png
  1. Provide information in the Resource in use message field. This information will be displayed to the user in the User Portal (Access Gateway) when trying to connect to the target server, another user will be already connected to that server via the same account.

Note

You can customize this message by including variables (organization, phone, name, full_name, or email. ), enclosed in double %% symbols. E.g., %%email%%.

Warning

Resource in use feature is available for RDP connections only and can be configured while Creating an RDP server by checking the Inform about existing connection option.

  1. Click Save.

Predefined Keyboard Layout

Administrators can predefine the keyboard layout globally for the User Access Gateway:

  1. Select Settings > Resources.
  2. Select USER PORTAL tab.
  3. Go to the Predefine Keyboard Layout field and select the default keyboard layout from the drop-down list. This layout will be visible to users logging into User Access Gateway.

Note

Each user can customize their keyboard layout individually in the User Access Gateway.
