SMS Authentication Definition

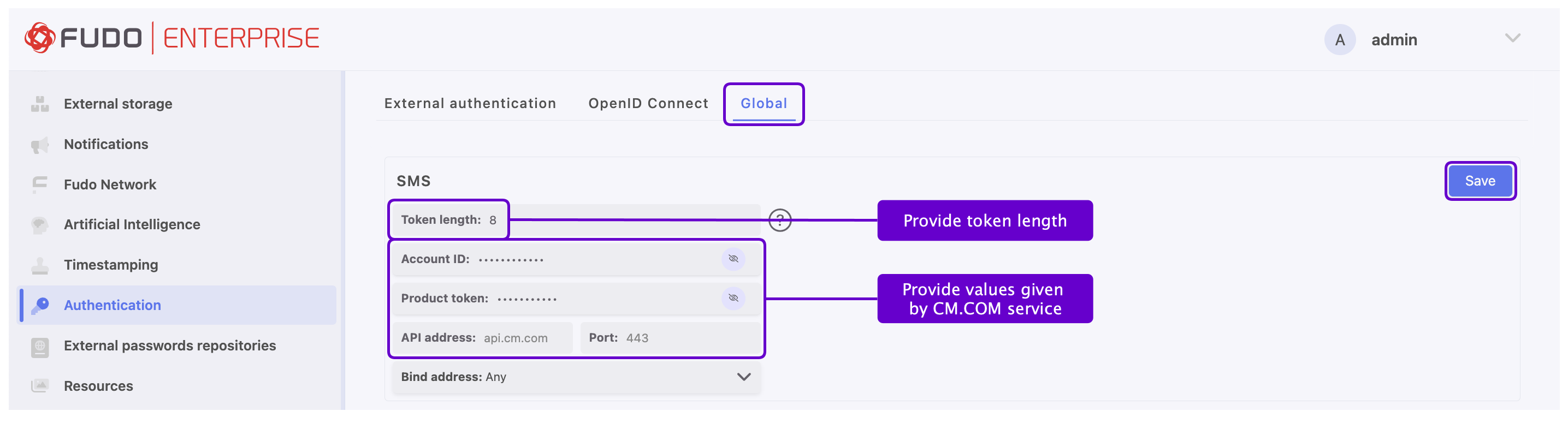

  1. Select Settings > Authentication > Global tab.

  2. Go to SMS section.

../../_images/5-5-auth-sms.png

  1. Input Token length.

Note

The token’s length should be in the range of 4-16.

  1. Input Account ID.

  2. Input Product token.

  3. Input API address and its port.

Note

The values for Account ID, Product token and API address are given by CM.COM service. You need to have a registered account there to be able to obtain the required information.

  1. Select the Bind address.

  1. Click Save.


Next, configure SMS authentication method for the User:

  1. Go to Management > Users.

  1. Find and select the user for whom you want to enable SMS authentication.

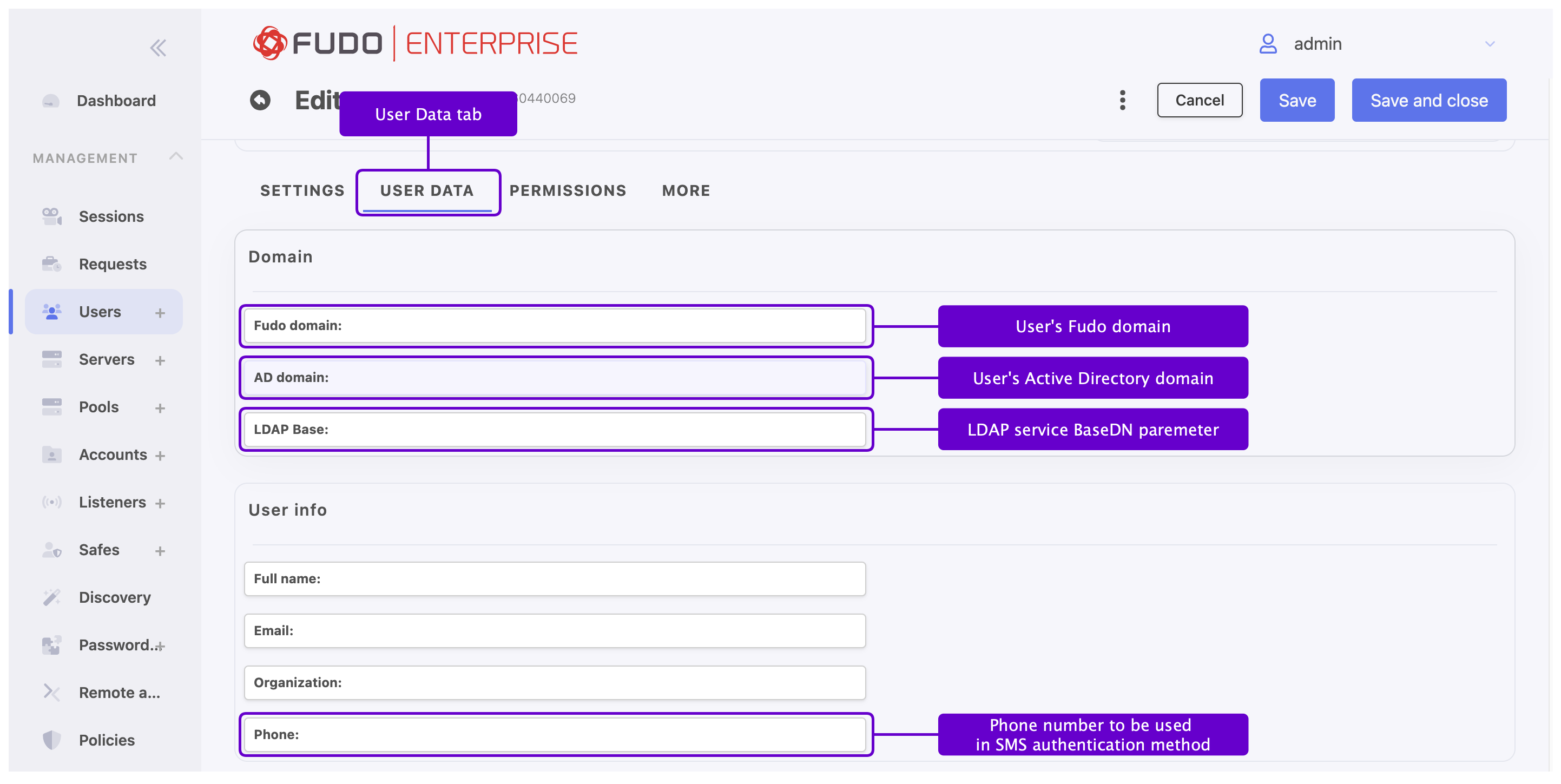

  2. Input a phone number in the User data tab, in the Phone input field.

../../_images/5-4-create-user-step3.png

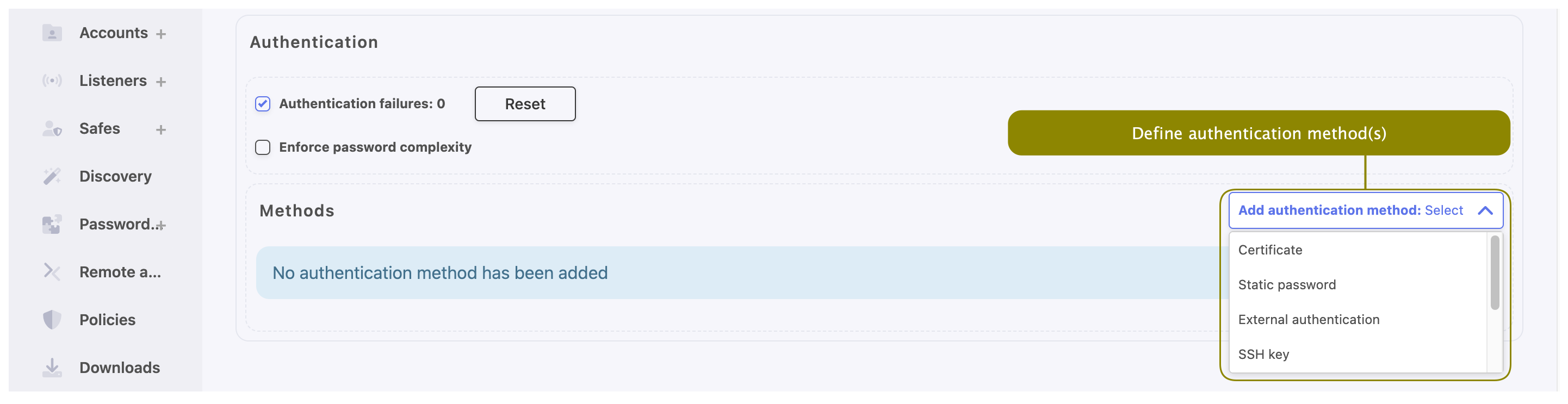

  1. In the Settings tab, under the Authentication section choose SMS type from the Add authentication method drop-down list.

../../_images/5-4-users-auth-type.png

  1. Choose Static password or External authentication (AD or LDAP) as a First factor.

  2. Provide static password or external authentication source.

  1. Select Required password change on next login option if needed.

  2. Click Save.

  1. Log in to the Access Gateway with SMS code.
