Creating an RDP Server

Note

• A server object can be linked to only one anonymous account.

• A server object can be linked to only one forward account.

• Fudo Enterprise allows authenticating against RDP server with Kerberos.

1. Click + icon next to the Servers tab of the Management sub-section, or

2. Select Management > Servers and then click + Add server.

3. Enter server’s unique name.

4. Select Blocked option if the object should be unavailable after creation. A blocked server cannot be used to establish connections until it is manually unblocked. Providing a reason for blocking is required.

5. Optionally, click the Description checkbox and provide a text that will help identifying this server object.

SETTINGS TAB

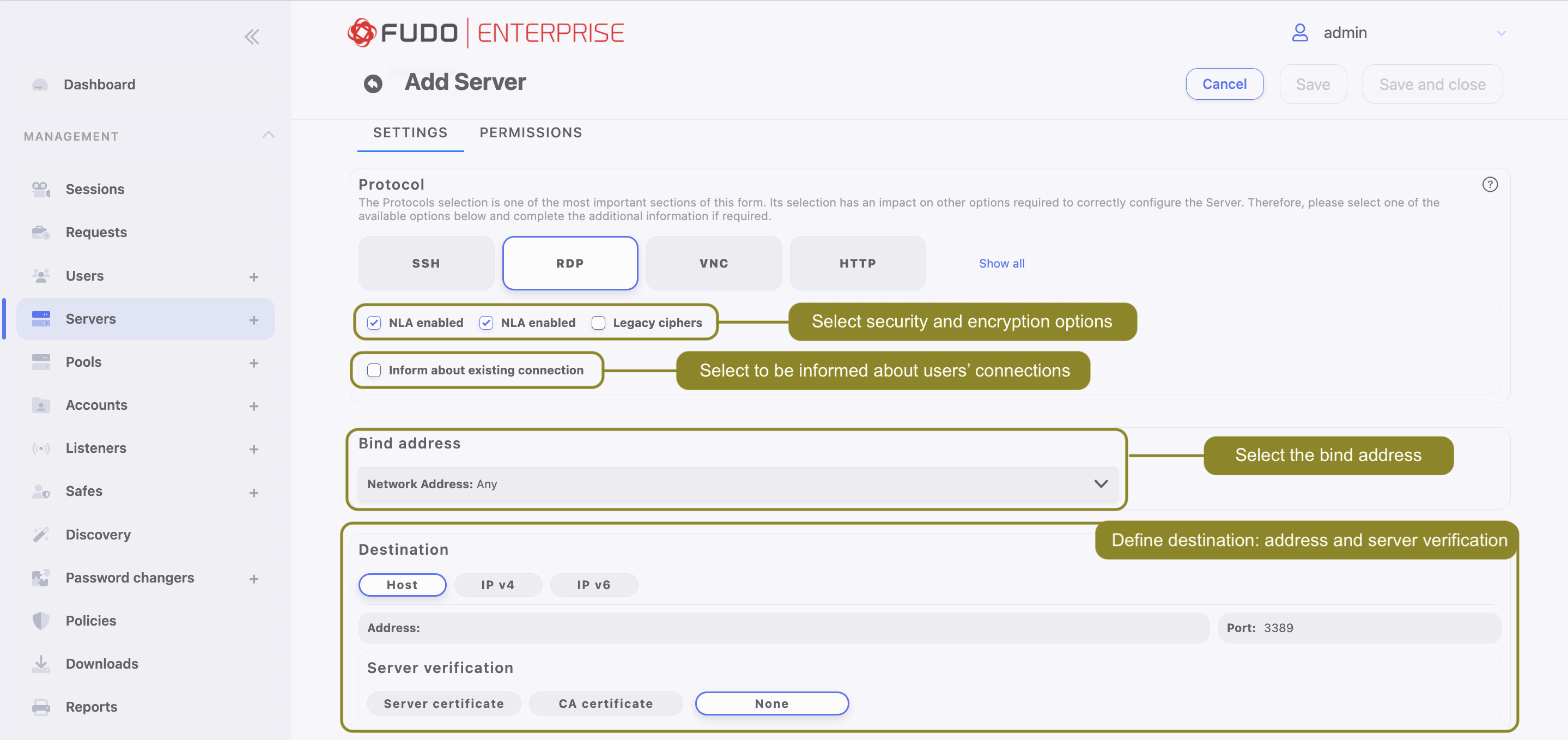

1. Go to the SETTINGS tab.

2. In the Protocol section, select RDP.

Warning

After server’s definition is saved, protocol’s field is uneditable.

3. Select the TLS enabled to connect to monitored server over TLS.

   • Check the NLA enabled option for additional security.

   Note

   Security mode must match the security mode setting in the RDP listener configuration. The NLA enabled option within a server corresponds to the Enhanced RDP Security (TLS) option within the listener.

   • Select Legacy crypto option to allow negotiating older encryption algorithms (DSA(1024), RSA(1024)) when establishing connections.

   • Check the Inform about existing connection option to have the users informed that other users are connected to the server, they are trying to connect to.

4. From the Bind address drop-down list, select Fudo Enterprise IP address used for communicating with this server.

Note

• The Bind address drop-down list elements are IP address defined in the Network configuration menu (Network Interfaces Configuration) or labeled IP addresses (Labeled IP Addresses).

• In case of cluster configuration, select a labeled IP address from the Bind address drop-down list and make sure that other nodes have IP addresses assigned to this label. For more information refer to the Labeled IP Addresses topic.

5. In the Destination section select Host, IPv4 or IPv6. Enter server’s IP address.

Note

• Depending on selected option, default values for the Mask and Port fields are filled out automatically. This way the Fudo Enterprise system detects server as one with unique address. In order to set up address for entire subnet, provide a dedicated value for the Address and the Mask fields.

• In the case of overlapping address definitions, during connection establishment the more specific configuration (higher network mask) is always selected, even if the user does not have permissions assigned to it. This mechanism enables defining exceptions within broader access rules (e.g., granting access to /24 while explicitly excluding /32).

• If the TLS enabled was checked, in the Server verification section select one of the following options:Server certificate or CA certificate and provide respective certificate data. Select None to disable server verification. To learn more about the RDP server certificate management, please follow the Managing RDP Server Certificates in Windows Server section.

• Otherwise, provide server key.

6. Click Save.

OBJECT RIGHTS TAB

The OBJECT RIGHTS tab is used to define which users and roles are allowed to manage the object and which capabilities (Read, Modify, Delete, Block) are assigned to them.

1. Go to the OBJECT RIGHTS tab.

2. Open the USERS sub-tab.

3. Click Assign User, select the users from the list, and click Save.

4. In the Users list, select the capabilities for each user by enabling one or more of the following options: Read, Modify, Delete, or Block.

5. Open the Roles sub-tab.

6. Click Assign Role, select the roles from the list, and click Save.

7. In the Roles list, select the capabilities for each role by enabling one or more of the following options: Read, Modify, Delete, or Block.
