Connecting over SSH on Microsoft Windows 7 and 10

Note

To automatically initiate SSH connections you must install PuTTY and configure association between client the app and the SSH protocol. To do the latter it is advised to install WinSCP, which will perform necessary configuration changes. Both programs must be in their 32-bit versions.

  1. Download and install WinSCP.

    https://winscp.net/download/WinSCP-5.9.5-Setup.exe

Note

Verify the checksum value to make sure that the integrity of the binary file has not been compromised.

  1. Download and install PuTTY.

    https://winscp.net/download/putty-0.68-installer.msi

Note

  • Install PuTTY in the default installation location: C:\Program Files (x86)\PuTTY\.

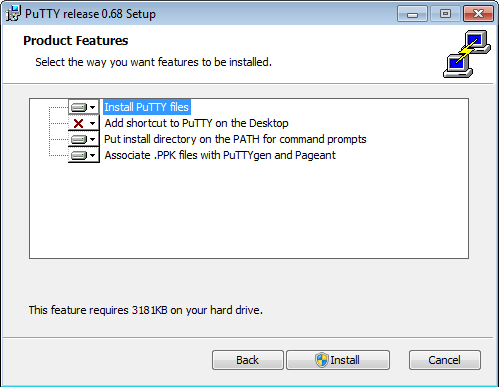

  • During installation select default features set.
../../../_images/putty_product_features.png

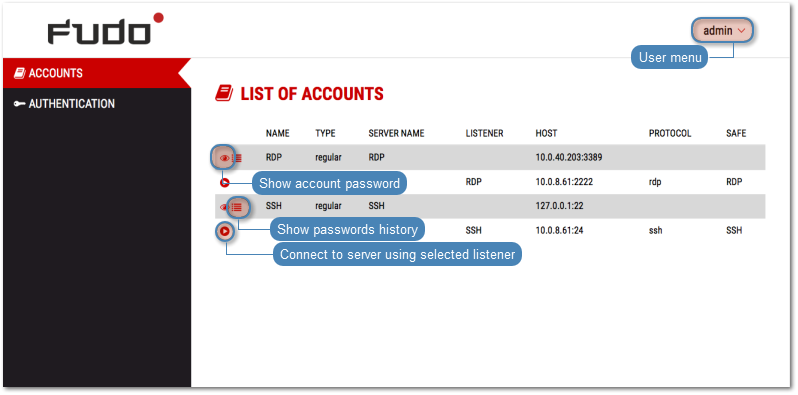

  1. Log in to the User Portal.
  1. Select ACCOUNTS.
  2. Find desired account and server.
../../../_images/accounts1.png
  1. Select desired listener and click .

Note

  • The list contains both internal and external listening addresses.
  • In case there is the icon displayed next to the safe instead of the icon, you must fill in access request form.

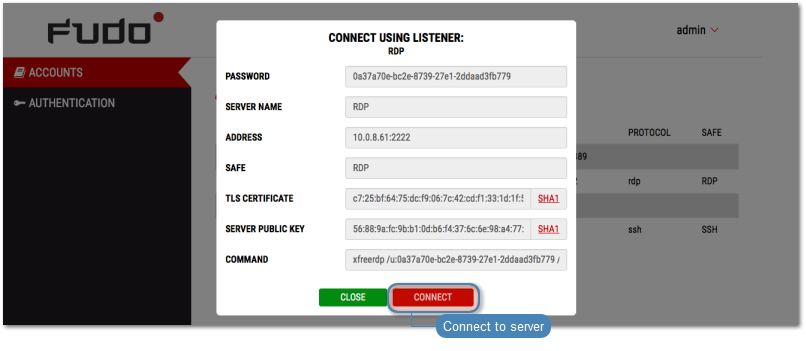

  1. Click CONNECT to launch client application appropriate for selected listener with connection parameters forwarded.
../../../_images/connect_modal.png
  1. In the Launch application select WinSCP:SFTP,FTP,WebDAV and SCP and click Open.

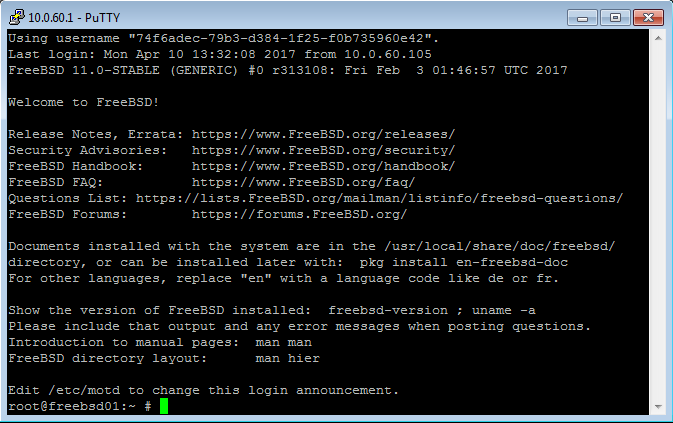

  1. The connection has been established.
../../../_images/putty_connected.png
